Edge-On-Up Industrial Edge Tester PT50A

$479.00
$479.00 $500.00
Tax included.

Key Features

  • High-Resolution Results for Precise Sharpness Measurement

  • Wide Measurement Range for Various Types of Blades

  • Convenient Battery-Powered Operation with Included AAA Batteries

  • Complete Kit with Test Clips and Replacement Media

Overview

When it comes to testing the sharpness of blades, traditional methods like cutting newspaper or shaving arm hair simply don't provide the accuracy needed. The BESS certified PT50 Series Sharpness Tester from Edge-On-Up offers precision and consistency that professionals and enthusiasts trust to measure sharpness.

Using the BESS (Brubacher Edge Sharpness Scale), developed by Mike Brubacher, this method delivers a reliable measurement of knife sharpness. It's a widely adopted testing standard used to evaluate the sharpness of blades accurately.

Product Details

The PT50 Series Sharpness Testers from Edge-On-Up allow you to precisely measure and quantify the sharpness of any edge. These systems calculate the force in grams required to cut through a calibrated test medium. The resulting number provides an accurate indication of the blade's sharpness.

For reference, a scale is provided to correlate the score to the BESS range, from 2000 BESS (unsharpened knife) to 0 BESS (maximum sharpness). Knives scoring below 50 BESS are considered razor sharp. The lower the BESS value, the sharper the blade, as less force is needed to cut.

Specifications

  • 25 measurements per second processing speed

  • Fine 1-gram resolution

  • Maximum load capacity: 3000 grams

  • Heavy-duty steel measurement platform

  • Industrial-grade strain sensor

  • Compact, portable design

  • Easy 3-button operation

  • 2 AAA batteries included

Included in the Package

  • Edge-On-Up PT50A Sharpness Tester

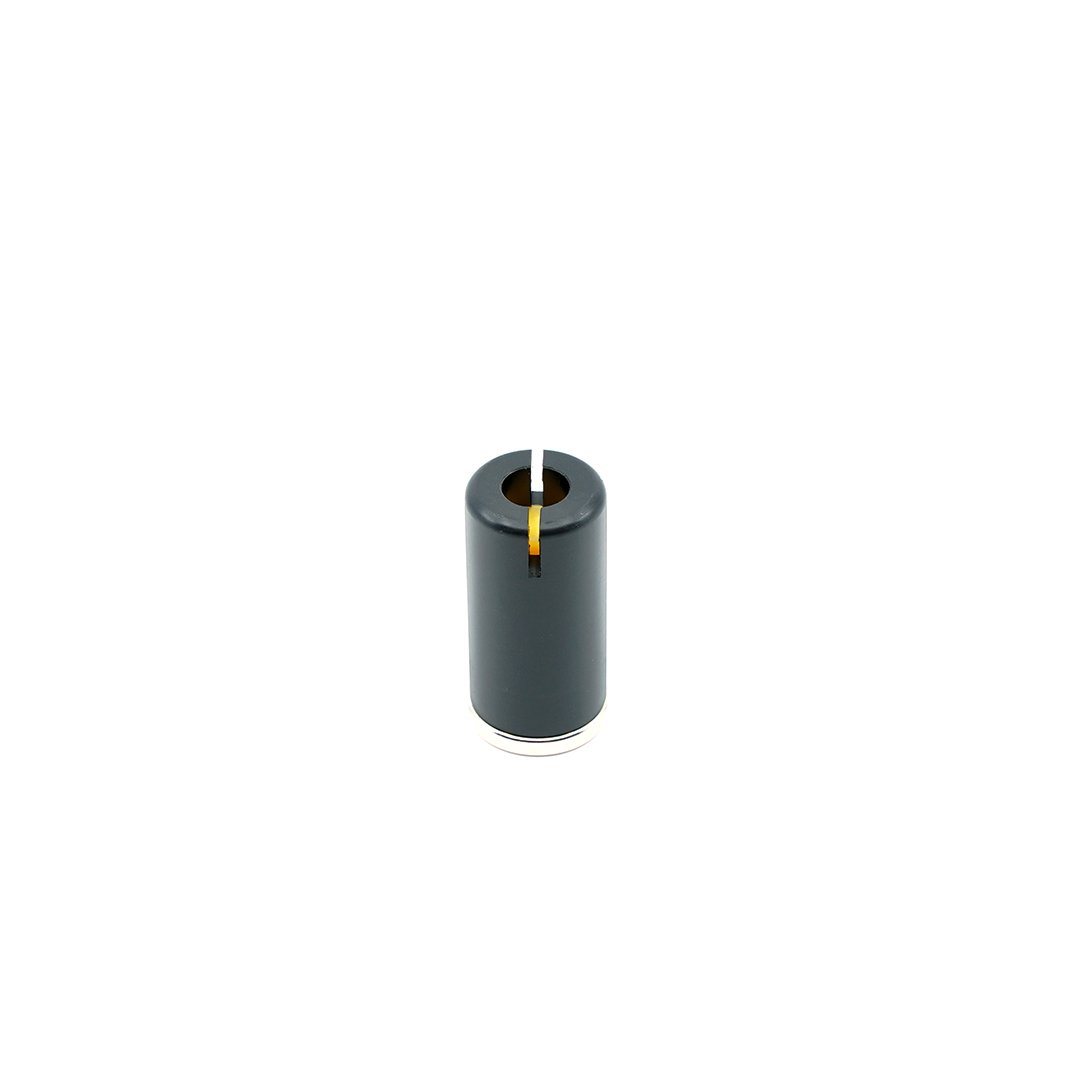

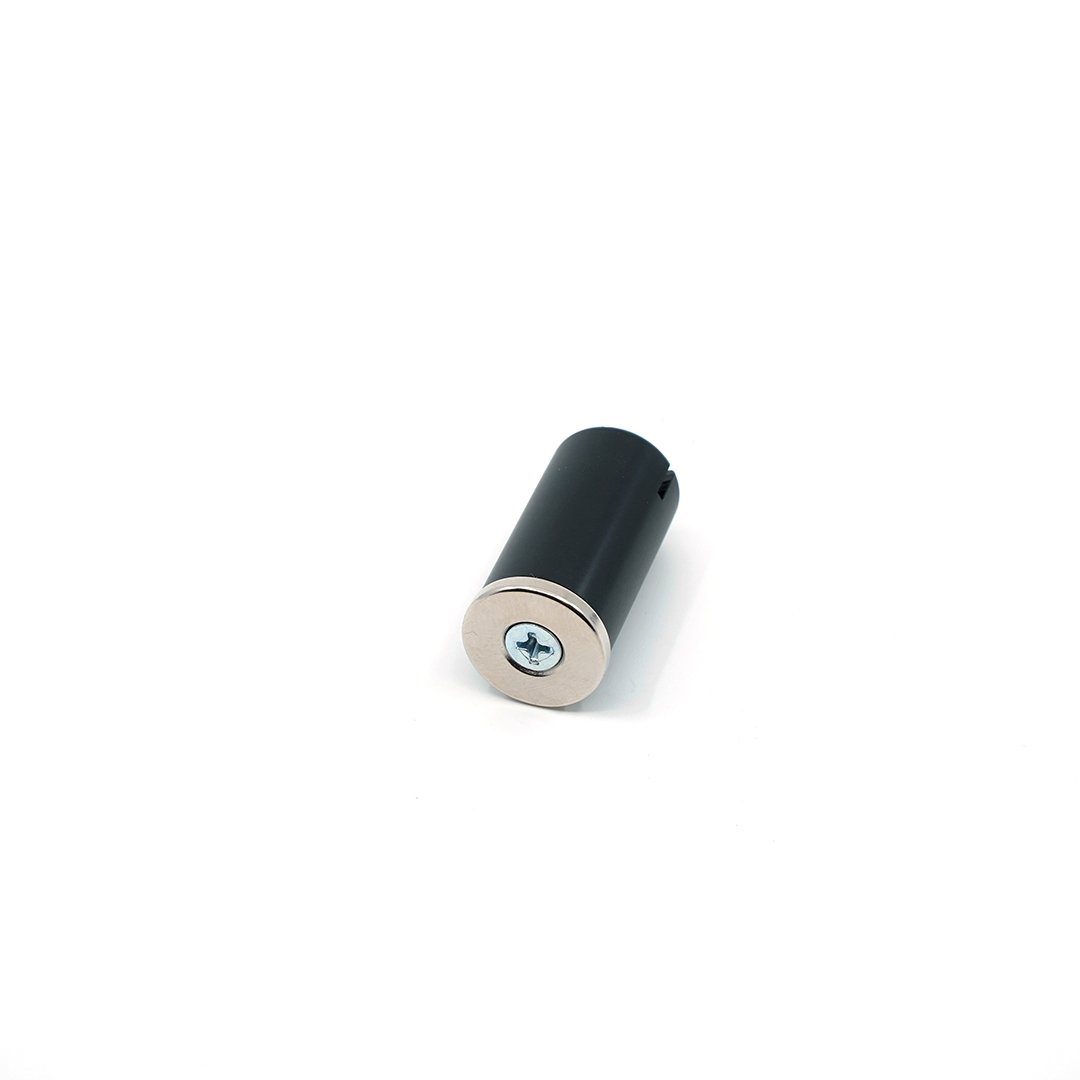

  • Edge-On-Up Fulcrum support

  • Aluminum base and DoubleX test medium (replacement media available)

  • Test clip base

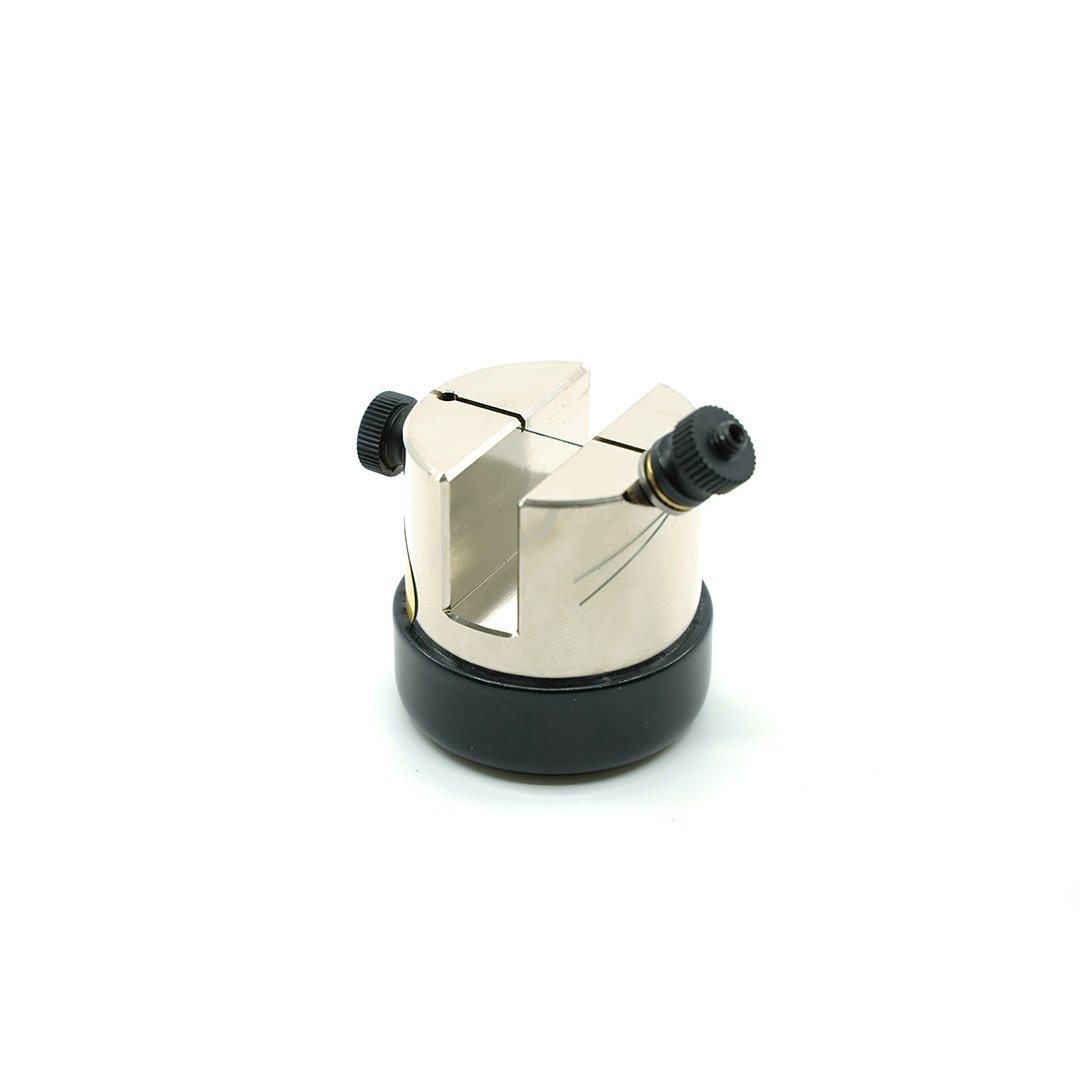

  • New test fixture

  • 25 test clips (replacement media available)

The Edge-On-Up PT50A Sharpness Tester enhances your sharpening accuracy with its responsive sensor and fast processing speed. Ideal for both professionals and hobbyists, it delivers high-resolution results in a portable and easy-to-use design.
